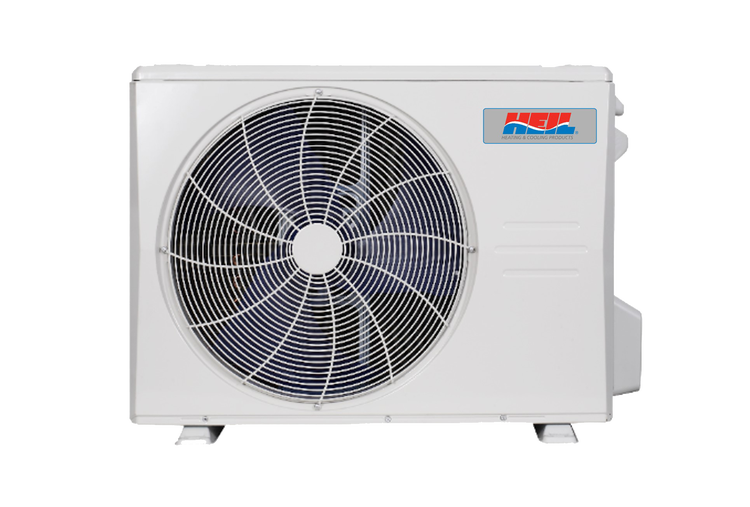

D5CSRA
QuietComfort® Heat Pump

The new heat pump is a powerhouse unit with up to 26 SEER2 and up to 16.3 EER2 efficiency. Features like Condenser High-Temperature Protection make this unit intelligent as well as efficient. Available in sizes from 9 to 36 with eight different style indoor unit options, there is certainly a system to meet your cooling and heating needs.

Icon of a question mark
Icon of a question mark
  • Select sizes are ENERGY STAR® certified
  • Inverter Compressor
  • Up to 26 SEER2 cooling efficiency
  • Up to 16.3 EER2 heating efficiency
  • Available in 115V and 208/230V
  • Sizes: 09 / 12 / 18 / 24 / 30 / 36
  • 100% heating capacity at 5° F (-15° C)
  • Built-in basepan heater
  • Auto-restart function
  • Condenser high-temperature protection
  • Compatible with air handlers, 1-way cassettes, 4-way cassettes, floor consoles, ceiling and floor consoles, slim ducted units (low and high static), and high walls
  • Extremely quiet outdoor operation, as low as 52.5 dB(A)1
  • Anti-corrosive fin coating
  • R-454B refrigerant continues our legacy of dedication to environmental stewardship. This refrigerant achieves a remarkable 75% reduction in global warming potential while preserving the non-ozone depleting properties of our previous refrigerant.
  • 10-Year Parts Limited Warranty2
  • 5-Year No Hassle Replacement™ Limited Warranty3
  • Up to 26 SEER2
  • Up to 16.3 EER2
  • Up to 13.9 HSPF2
  • Outdoor sound: as low as 52.5 decibels1
  • Cooling operating range -23° ~ 122° F (-25° ~ 50° C)
  • Heating operating range -22° ~ 75° F (-30° ~ 25° C)
  • Piping length: 82-213 ft. depending on unit capacity and system configuration
  • Inverter Compressor
  • 0.75 – 3.0 Ton
  • 115V (Sizes 12), 208/230V (Sizes 6-36)
  • Heavy-gauge, galvanized steel construction
  • Primed and coated with a 100% coverage, baked-enamel finish in white
  • Lower global warming potential R-454B refrigerant
  • Up to 26 SEER2
  • Up to 16.3 EER2
  • Up to 13.9 HSPF2
Cooling Efficiency Cooling Efficiency help_outline
Up to 26 SEER2
Heating Efficiency Heating Efficiency help_outline
Up to 13.9 HSPF2

1Quietest size within each model group during low fan-speed operation

2If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.

3No Hassle Replacement™ Limited Warranty: If compressor, coil or heat exchanger fails due to defect during the applicable No Hassle Replacement limited warranty time period, a one-time replacement with a comparable unit will be provided.
